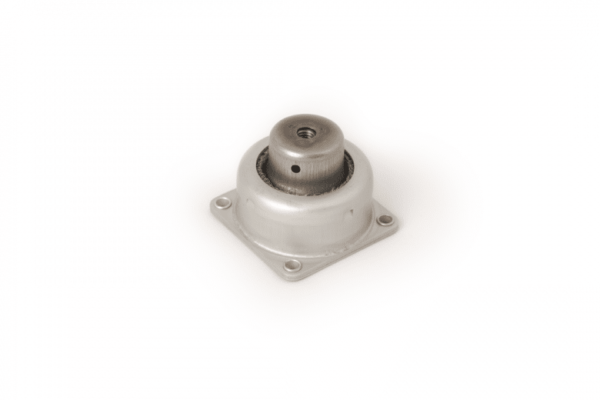

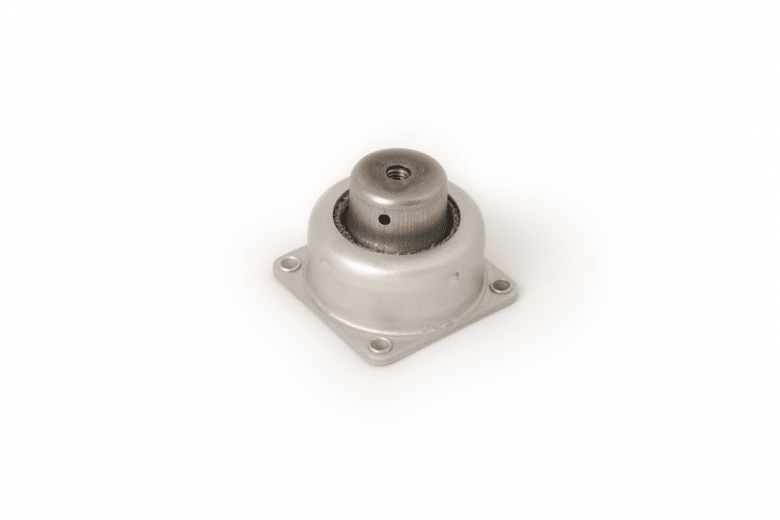

Resilient elements: steel spring, cushions and bore made of 18/8 stainless steel. Housing and flange in aluminium. These mounts meet MIL-E-5400 and air 7306 standards.
Weight: 0,1 – 0,12 kg
Characteristics
A series of isolators with almost constant natural frequency, 7-10 Hz (within the recommended load range). Loading in compression only. Built in snubbing limits the movements in all directions.
Maximum excitation amplitude: ±0,8 mm
Temperature range: -90°C to +300°C
Magnification factor (Q): < 4
Mechanical strength: 10 g
Protection of Components in Electronic, Electric or mechanical sub-assemblies and assemblies for vehicles, Aircraft and industrial applications. Suspensions of light machine Tools.
