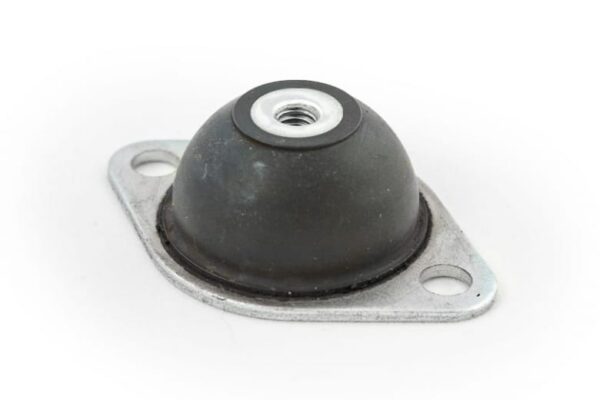

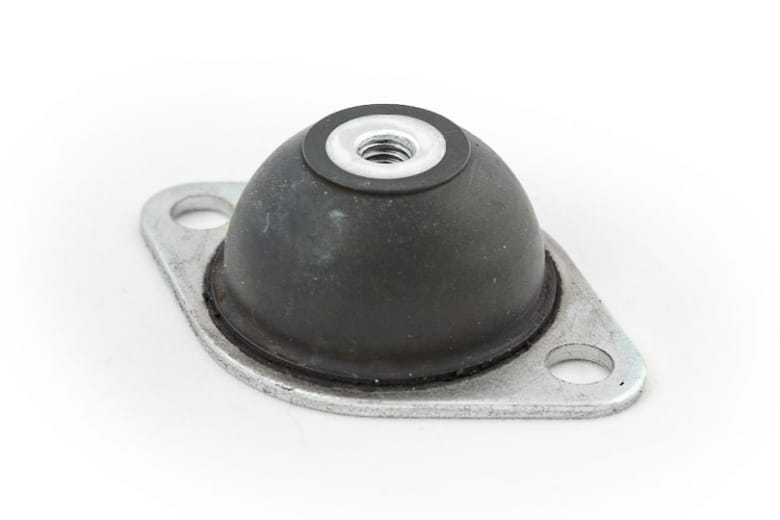

Low frequency rubber isolator primarily for vibration isolation of rotating machinery. The design allows for large deflection resulting in low resonance frequency and effective vibration isolation. May also provide protection against small impacts. For shock mounts see the range of WIRe Rope Isolators A01-A22.
Can also be delivered in AISI 316L
Characteristics
Natural frequency: 8-12 Hz (The larger variants have lower natural frequency due to larger deflection).
Amplifications factor: 3-4
Applications
Suspensions of compressors, AC-units, fans, pumps and other rotation machinery, electronic equipment etc.
