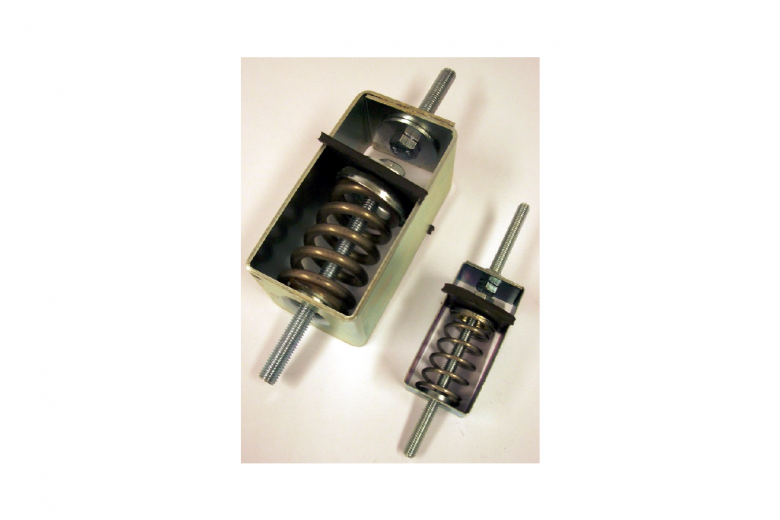

Housing in zinc-plated steel, spring (and cushion for VE-112) in high tensile stainless steel. Guiding bracket in neoprene. Zinc-plated fastening details.
Characteristics
A series of low-frequency isolators, working in tension only.
Natural frequency: 3-6 Hz
Maximum excitation amplitude: ± 0,3 mm.
Amplification factor: < 10.
Temperature range: -30 °C to +100 °C.
Applications
Suspension of pipework, smaller fans, air conditioning units, etc.
