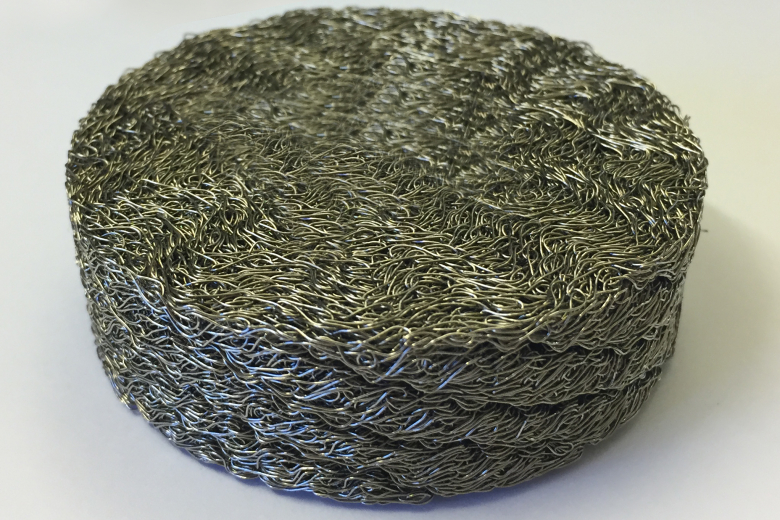

All metal resilient element produced of 18/8 steel mesh. The progressive spring rate yields an almost constant natural frequency within a wide load range. The element is non creeping, has excellent resistance to oils, solvents, water, chemical agents and to extremes of temperature.
Cushions are also available in AISI 316 stainless wire and other special metals.
Load range: 25-250 daN (≈kg).
Deflection: 2,5-7,5 mm.
Natural frequency: 12-15 Hz.
Maximum excitation amplitude: ± 0,3 mm.
Damping ratio: 15-20 %.
Amplification factor: 3-4.
Dynamic overload: 5 g
Temperature range: -90 °C to +300 °C.
Isolation of machine tools, thermodynamic machines, transformers
etc. The cushion is suited for vibration isolation of “floating floors”.
