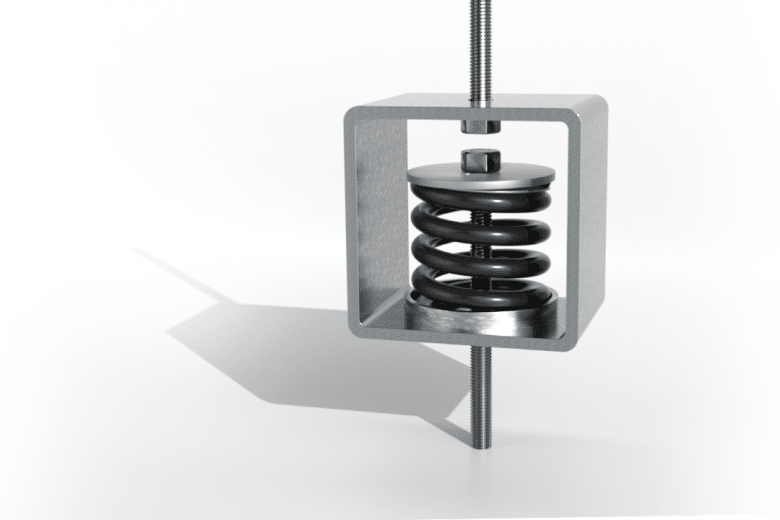

Single working all metal telescopic mount with spring made of high tensile steel. Scroll in aluminum and housing in zinc plated steel.
Mounts with low natural frequency, 5-6 Hz, depending on preload.
Accepts both static and dynamic tension forces.
Maximum excitation: ± 1 mm.
Mechanical strength: 2 g.
Amplification factor: < 5.
Temperature range: -90°C to +300°C
Isolation of exhaust-, air- water- and steam-pipes.
Isolation of fans, ventilation and cooling aggregates.
Stabilization of frames and equipment on vessels, ships and vehicles.
