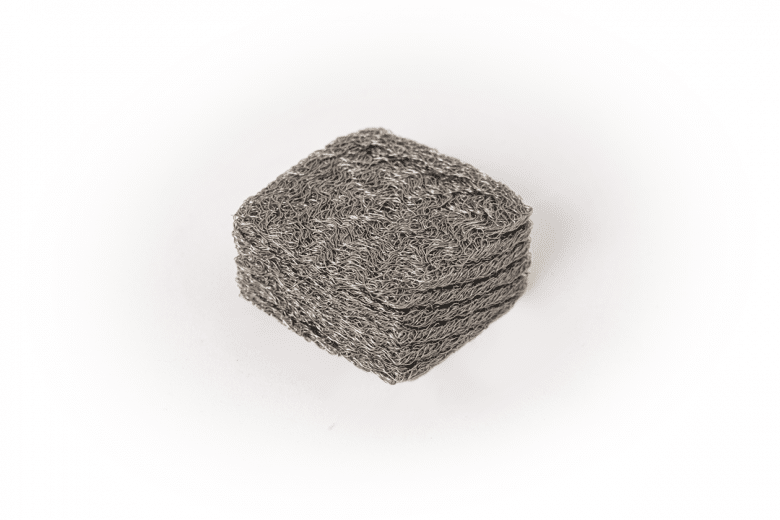

All metal resilient element produced of 18/8 steel mesh. The progressive spring rate yields an almost constant natural frequency over a wide load range. The element is non creeping, has excellent resistance to oils, solvents, water, chemical agents and to extreme temperatures.
Cushions are also available in AISI 316 Stainless wire and other special metals.
Characteristics
Material: Stainless steel 18/8.
Natural frequency: 12-15 Hz
Maximun excitation amplitude: ± 0,3 mm.
Amplification factor: 3-4.
Dynamic overload: 5 g
Temperature range: -90 °C to +300 °C.
Applications
A very useful construction element for suspension of smaller machine tools and for protection of sensitive equipment. Also used as resilient element for anti vibration pipe clamps.
