VT1502 - VT1504 - VT1505 - VT1506

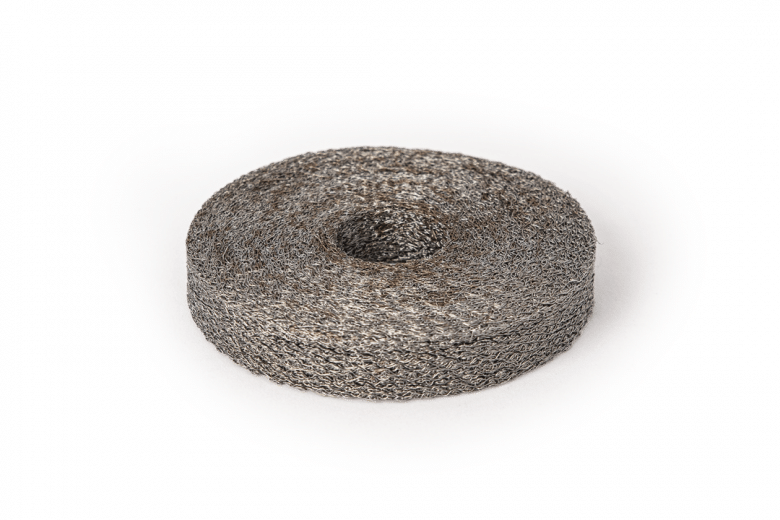

All metal resilient element produced of 18/8 steel mesh. The progressive
spring rate yields an almost constant natural frequency
over a wide load range. The element is non creeping, has excellent
resistance to oils, solvents, water, chemical agents and to
extremes of temperature.

Cushions are also available in AISI 316 stainless wire and other
special metals.

Isolator with relatively constant natural frequency over the load
range; 15-22 Hz.
Intended for use in compression but can accept occasional
tensile loads.

Maximum excitation amplitude: ± 0,3 mm.
Amplification factor: < 6. Dynamic overload: 5 g. Temperature range: -90 °C to +300 °C. Applications Vibration isolation for all kind of heavy units, gas turbines, offhore accommodation modules etc. Protection from high dynamic forces (impacts) of punching machines, power presses, etc. Very useful as “snubber” for suspended marine equipment such as auxiliary engines.
