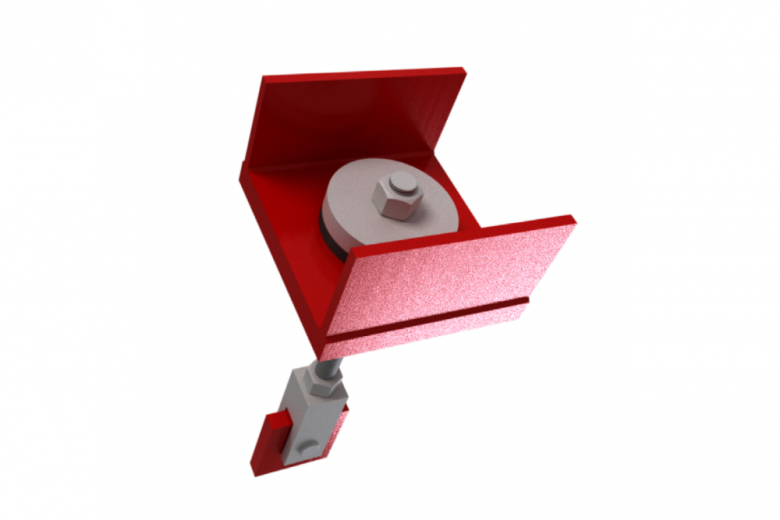

VT281P - VT283P

Description

Double acting all metal pendulum mount. Resilient element, cushion in stainless steel wire. Other parts in painted mild steel.

Characteristics
Mounts with low natural frequency, 15-20 Hz. Accepts both static and dynamic tension forces.

Maximum excitation: ± 0,3 mm.
Amplification factor: < 4. Temperature range: -90°C to +300°C Applications Isolation of exhaust-, air- and steam-pipes. Stabilisation of frames and equipment on vessels, vehicles etc. The total length of the extension rod is 330 mm for VT281P and 500 mm for VT283P. Of course a longer rod can be used, but there is a risk of breaking during compression loads.
