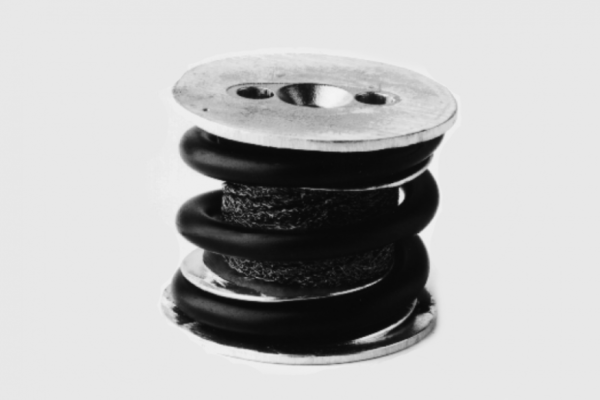

All metal isolators. Spring in high tensile steel,
resilient cushion made of 18/8 stainless steel wire
mesh. Schrolls: aluminium.
Weight: 0.6 – 0.85 kg, depending on suffix.
Very soft isolators designed for loading in compression only.
Maximum excitation amplitude: ± 0.5 mm.
Mechanical strength: 2 g.
Natural frequency: 8 – 11 Hz
Amplification factor: < 3 Temperature range: -90° to +300°C. Applications Isolation of rotating machines such as fans, compressors, generating sets, engines etc. Protection of fragile equipment. The mounts are delivered without mounting flange, which can be ordered separately. For greater static loads, use multiple element packages (consult us).
