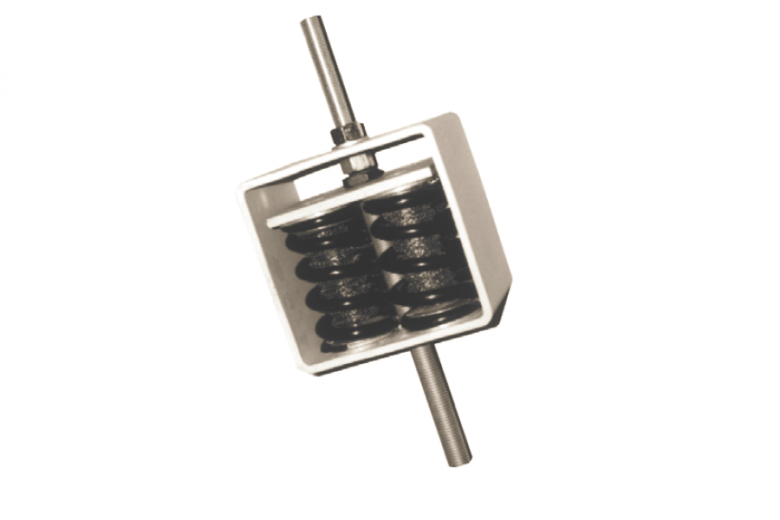

VT4524-4X

Description

Single working all metal telescopic mount. Spring made of high tensile steel. Resilient element, cushion in stainless steel wire. Scrolls in aluminium. Other parts in mild steel.

Characteristics
Mounts with very low natural frequency, 3-4 Hz, depending on preload. Accepts both static and dynamic tension forces.

Maximum excitation: ± 1 mm.
Mechanical strength: 2 g.
Amplification factor: < 8. Temperature range: -90°C to +300°C Applications Isolation of exhaust-, air- and steam-pipes. Stabilisation of frames and equipment on vessels, vehicles etc. For smaller loads, see isolator VT 4525-2X and VT 4525-0X.
