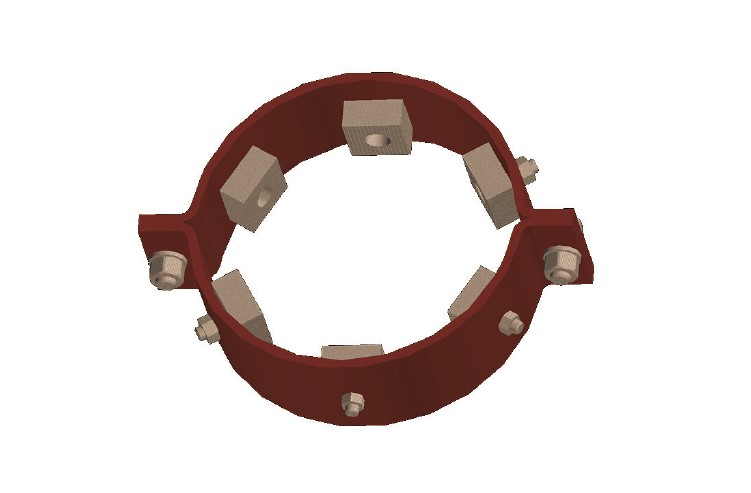

All metal pipe clamp with resilient elements made of stainless steel 18/8. Ring made of construction steel.
Protection: primer.
Characteristics
A very rigid construction that allows quick mounting/dismounting of the pipes. The resilient elements are non-creeping, unaffected by oils, grease, corrosive agents, and extremes of temperature. If required, it is possible to have the cushions produced in higher quality stainless steel or in other materials.
Applications
Resilient mounting for all kinds of pipes. Provides elastic stabilisation of vertical pipes whilst eliminating the tension forces caused by thermal expansion of the pipe. The dimensions of the clamp are shown in table bellow.
Notes
The cushions can be ordered separately, see data sheets for VT 1110-1130, VT 1120-1140.
