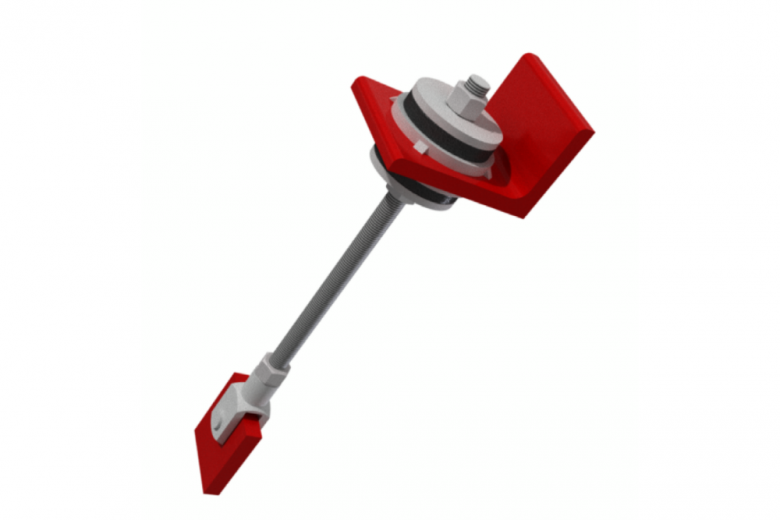

Double acting all metal pendulum mount. Resilient element, cushion in stainless steel wire. Other parts in painted mild steel.
Characteristics
Mounts with very low natural frequency, 15-20 Hz. Accepts both static and dynamic tension forces.
Maximum excitation: ± 0,3 mm.
Amplification factor: < 8.
Temperature range: -90°C to +600°C
Load range in daN (≈kg): 100 – 800
Applications
Isolation of exhaust-, air- and steam-pipes. Stabilisation of frames and equipment on vessels,
vehicles etc.
The total length of the extension rod is 330 mm. Of course a longer rod can be used, but there is a risk of breaking during
compression loads.
