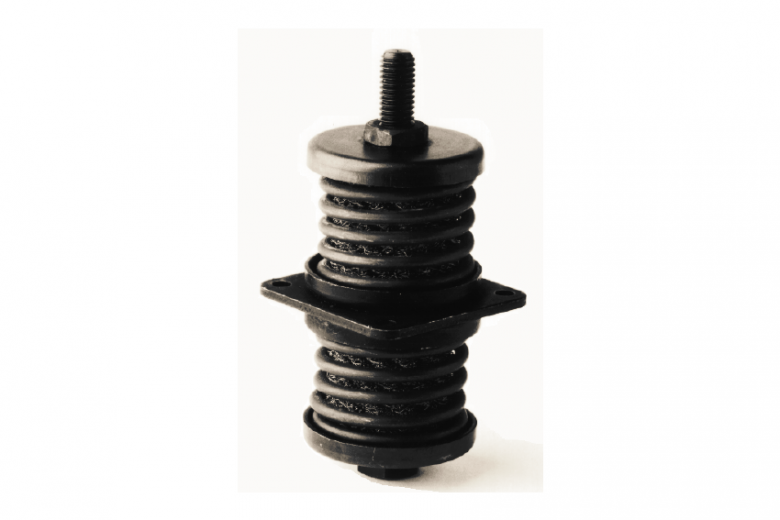

All metal mounts . High tensile steel springs. Resilient cushions in 18/8 stainless steel wire. Other parts in steel.
Surface protection: anodic treatment.
Weight: 0,55 kg.
Characteristics
A series of low frequency isolators with a natural frequency of 7-10 Hz within a wide load range. May be loaded in tension or compression.
Maximum excitation amplitude: ± 1 mm.
Mechanical overload factor: 3 g.
Magnification factor (Q): < 5.
Temperature range: -90°C to +300°C.
Applications
Stabilisation and protection of fragile equipment. Suspension of light exhaust systems on vehicles and vessels.
For higher loads, refer to models:
V 403 = 60 – 120 daN
V 404 = 100 – 200 daN
V 405 = 160 – 320 daN
V 406 = 270 – 500 daN
