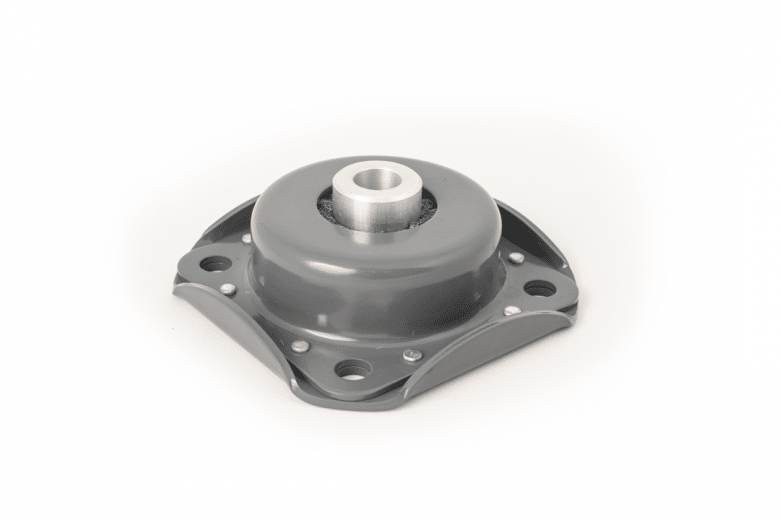

Resilient elements made of 18/8 stainless steel wire, stud in aluminium, casing and flange in steel.
Protection:
Paint
Weight:
4,0 kg.
Characteristics
Isolator with equifrequency character; 15-20 Hz for the recommended load range. May work under compression or tension.
Load range: 1500 – 3500 kg
Unloaded hight (H): 66 mm
Maximum excitation amplitude: ± 0,3 mm.
Amplification factor: < 6.
Temperature range: -90 °C to +600 °C.
Maximum load corresponding to a continuous acceleration of 2 g.
Applications
Suspension of machine tools in general, especially crushing machines, grinding mills
Elastic suspension of exhaust pipes, motors, pumps etc. on ships and vehicles
For rotating machines operating above 30 Hz.
For larger loads, refer to isolator V318.
This is the old V5654
